How do I change chart colors in Dashboards?
How do I change chart colors in Dashboards?
You can customize the colors of charts and graph elements directly from the Widget Settings panel in Dashboards. This helps you personalize dashboard visuals, highlight important data points, and maintain consistent report styling.
To change chart colors:
Open the required dashboard and locate the widget/chart you want to customize.
-

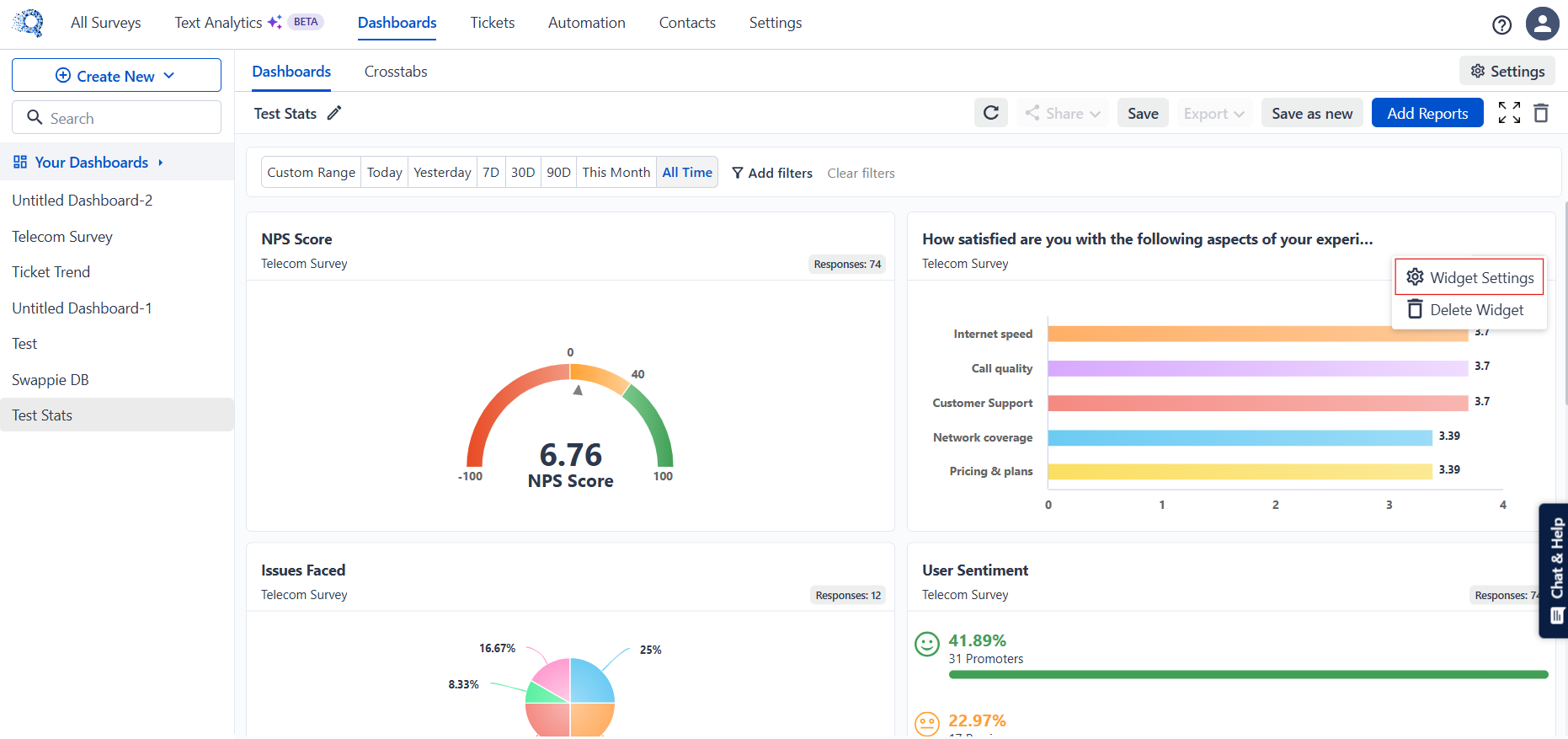

Click the Widget Settings icon available on the widget.
- In the Widget Settings panel, stay on the Visualization tab.
-

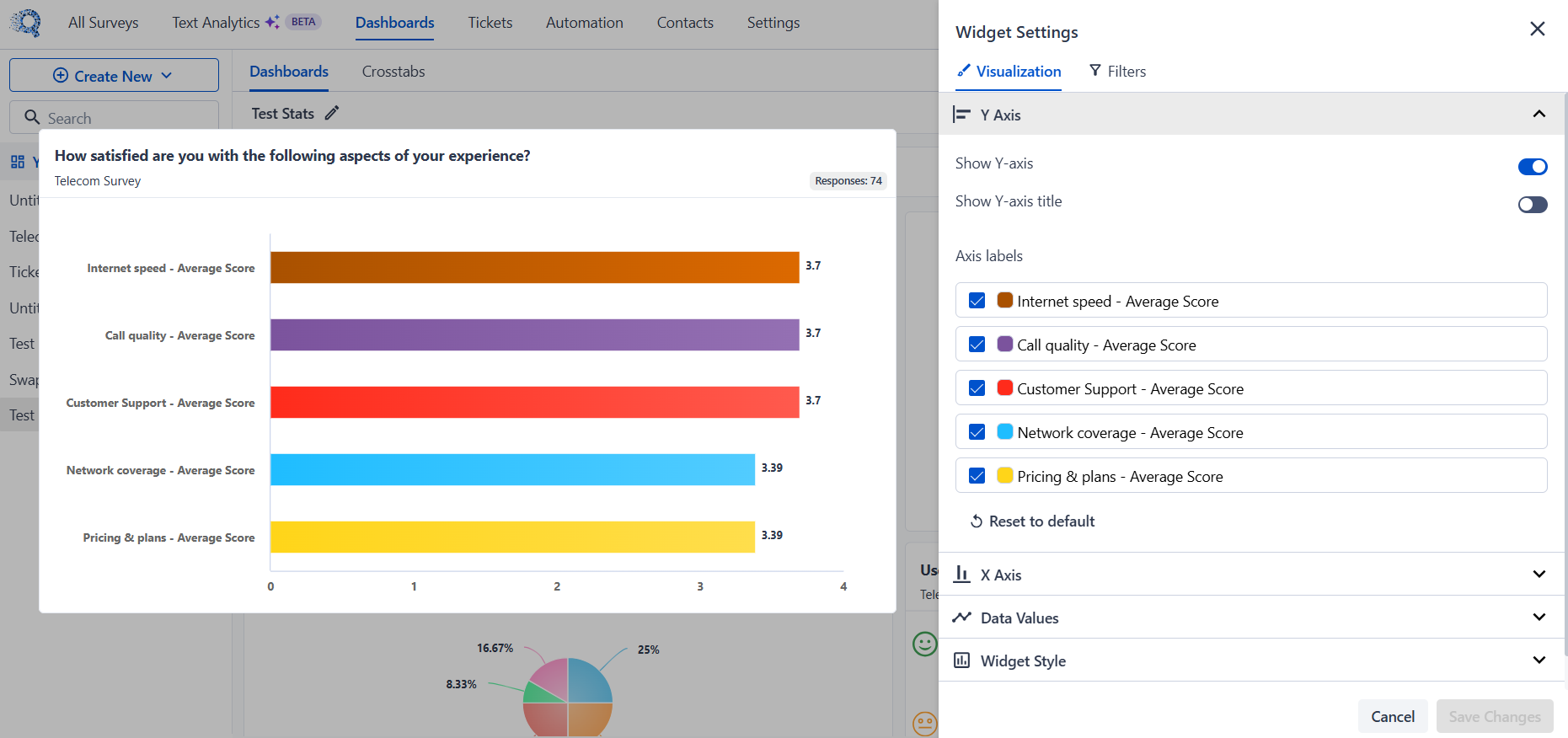

Expand either the X Axis or Y Axis section depending on the chart configuration.
- Under the axis labels or data series list, you will see the currently assigned colors.
- Click the colored box beside the required label, category, or data series.
-

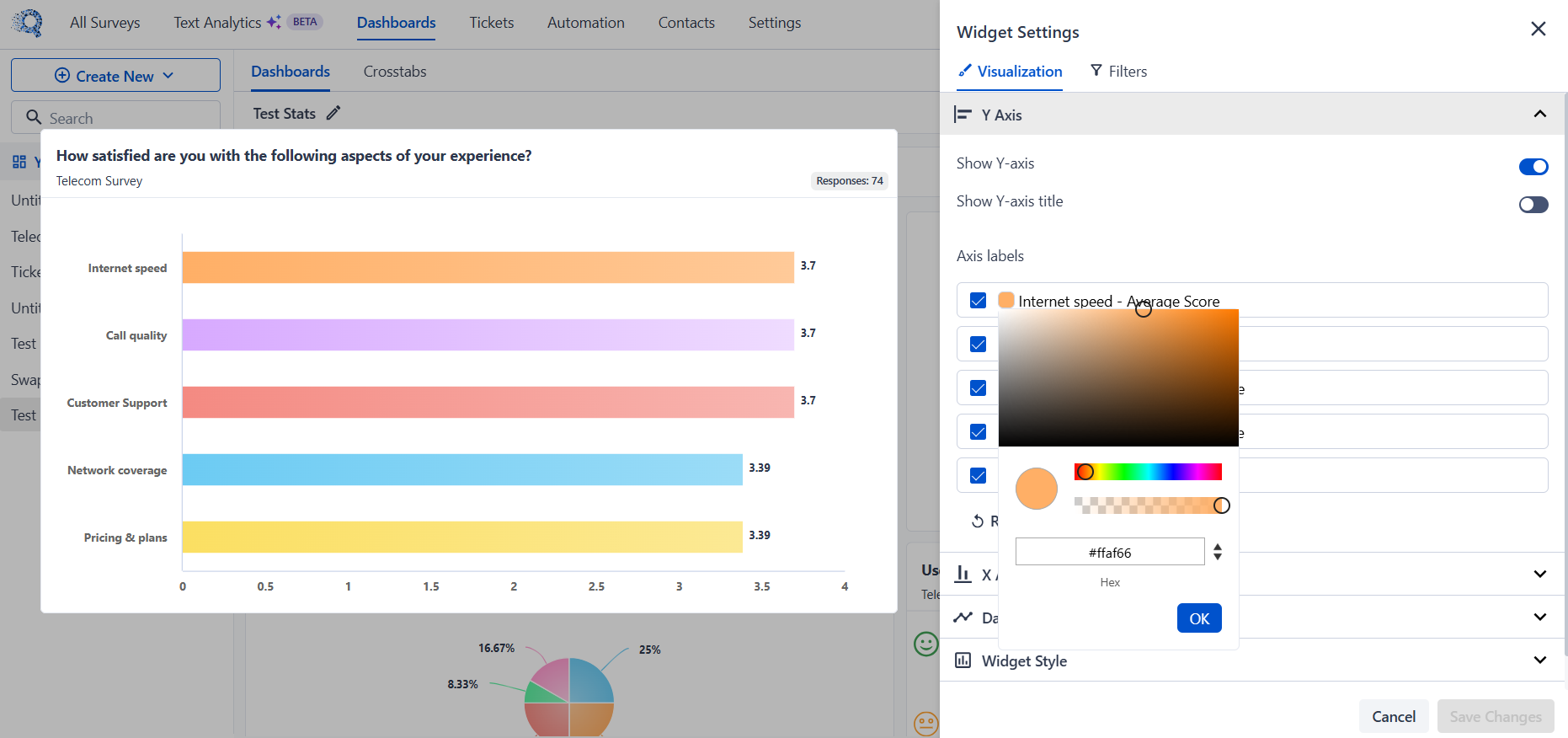

A color picker will appear.
- Select a new color or enter a HEX color code if required.
- Click OK to apply the selected color.
-
Repeat the same process for other labels or data series if needed.
-

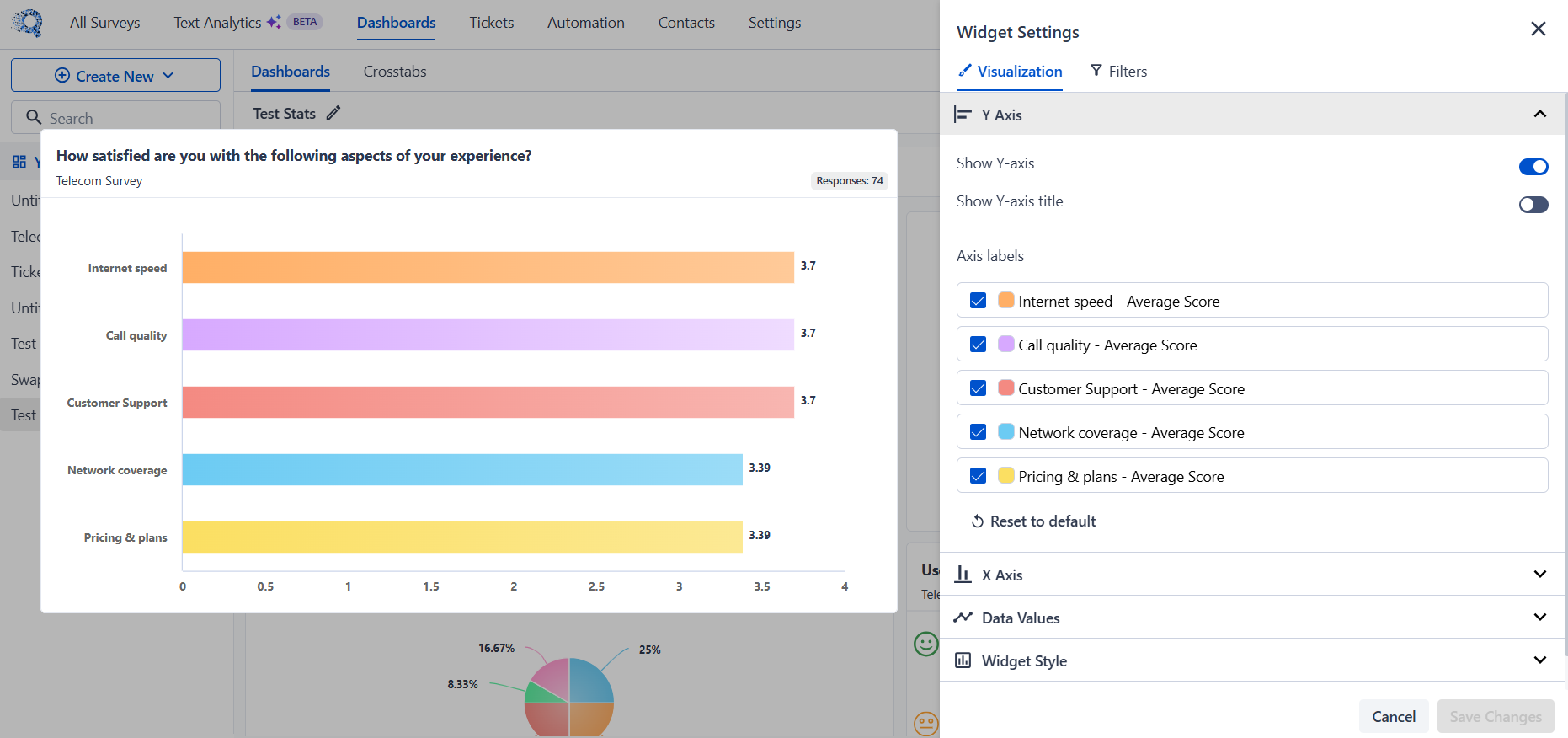

Click Save Changes to update the widget.
Additional Notes
- Colors can be customized for both X-axis and Y-axis data, depending on the chart type.
- You can assign different colors to individual categories, labels, or series for better visualization.
- Color changes are applied only to the selected widget.
-
You can restore the original colors anytime using the Reset to default option available in Widget Settings.
